BendPak XPR-10AS-LP Two-Post Lift – 10,000 lb. Capacity (Asymmetric)
$739.99
The ultimate two-post lift for performance garages and professional auto shops.
The BendPak XPR-10AS-LP is a high-performance asymmetric two-post lift featuring exclusive Low-Pro™ arms designed specifically for lowered sports cars and vehicles with lift points at the extreme edges of the chassis. Engineered for professional garages and automotive service shops, this industrial-strength lift offers cutting-edge technology, superior materials, and a robust 10,000 lb. lifting capacity.
With expandable width configurations, dual hydraulic direct-drive cylinders, and a reinforced structure, the XPR-10AS-LP delivers maximum efficiency, safety, and reliability.
Key Features & Benefits
- 10,000 lb. Lifting Capacity – Handles cars, trucks, SUVs, and low-profile sports cars.

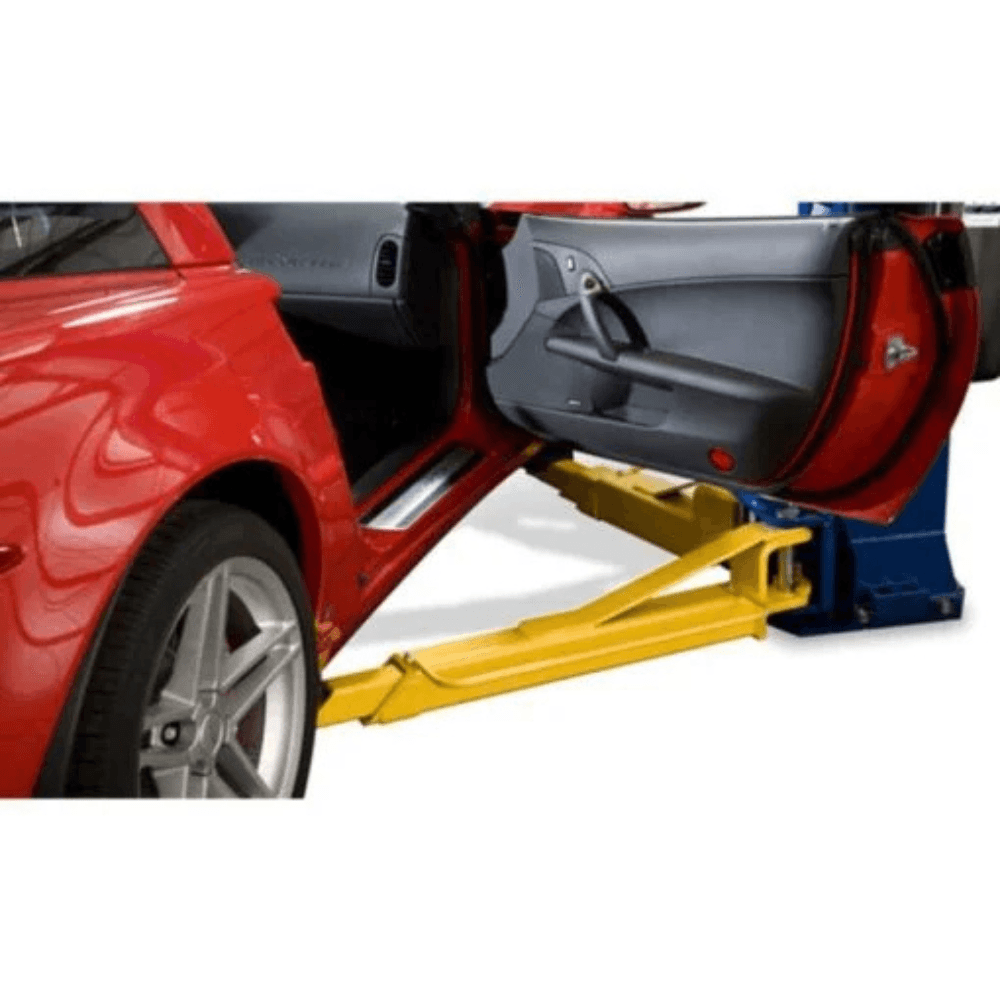

- Low-Pro™ Arms – Ideal for lowered vehicles with lift points at the chassis edge.
- Asymmetric Design – Allows easier vehicle entry/exit and better workspace ergonomics.
- Expandable Top Beam – Adjustable for narrow or wide drive-thru configurations.
- Double-Telescoping Screw Pads – Versatile and adaptable for various vehicles.
- Padded Overhead Safety Shutoff Bar – Prevents over-lifting and damage.
- Tru-Metric™ Arm Design – Flexible arm positioning for different vehicle sizes.
- 30° Rotated Single-Piece Columns – Improved lifting angles and column stability.
- Single-Point Safety Release – Simplifies locking/unlocking process.
- Dual Hydraulic Direct-Drive Cylinders – Smooth, powerful, and low-maintenance lifting.
- Oversized 53″ Tall Carriage – Increases lift durability and strength.
- Electric / Hydraulic Power System – Efficient, powerful, and easy to use.
- 17″ x 19″ A36 Steel Base Plates – Ensures maximum stability and safety.
- Dura-Glide™ UHMW Polyethylene Bearings – Self-lubricating for smooth operation.
- 1/2″ Aircraft-Quality Equalizer Cables – Long-lasting, reliable, and safe.
- Safety Locks Every 3″ – Multiple height settings ensure secure lifts.
- Automatic Arm Restraints – Keeps arms locked in position for added security.
- Versatile Drop-In Contact Pads & Stackable Adapters – Increases vehicle compatibility.
- 4-Piece 63mm Adapter Set Included – Expand lift range for various vehicles.
- Meets/Exceeds ANSI/ALI ALCTV-2011 Standards – Top-tier safety compliance.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max Capacity (Front / Rear Axle) | 5,000 lbs. (2,268 kg) |
| Height Overall | 145″ (3,683 mm) |
| Width Overall (Narrow/Wide) | 137″ / 145″ (3,480 / 3,683 mm) |
| Width Outside Columns (N/W) | 133″ / 141″ (3,378 / 3,581 mm) |
| Inside Columns (N/W) | 104″ / 112″ (2,642 / 2,845 mm) |
| Overhead Shutoff Height | 141″ (3,581 mm) |
| Front Arm Reach | 23.5″ – 38.5″ (597 – 978 mm) |
| Rear Arm Reach | 34.5″ – 54.5″ (876 – 1,384 mm) |
| Minimum Pad Height | 4.25″ – 6.75″ (108 – 171 mm) |
| Max Lift Height (Pad / +3″ Adapter) | 73″ – 75″ / 75.5″ – 77.5″ |
| Rise | 69″ (1,753 mm) |
| Drive-Thru Clearance (N/W) | 94″ / 102″ (2,388 / 2,591 mm) |
| Screw Pad Adjustment | 2″ (51 mm) |
| Motor | 220V AC / 60 Hz / Single Phase |
| Time to Full Rise | 45 Seconds |
| Max Load Per Arm | 2,500 lbs. (1,134 kg) |
Why Choose the BendPak XPR-10AS-LP?
The BendPak XPR-10AS-LP is the ideal two-post lift for performance-focused garages and professional automotive shops. With advanced Low-Pro™ arms, an asymmetric design, and heavy-duty direct-drive technology, this lift offers outstanding performance, safety, and vehicle compatibility.
Upgrade your shop with the BendPak XPR-10AS-LP</strong
