APlusLift HW-10KOH-A 10000LB Two Post Overhead Clear Floor Car Lift/Industry Leading 3 Year Warranty
$550.40
Description
-
-
-
Industry-leading 3-YEAR WARRANTY
-

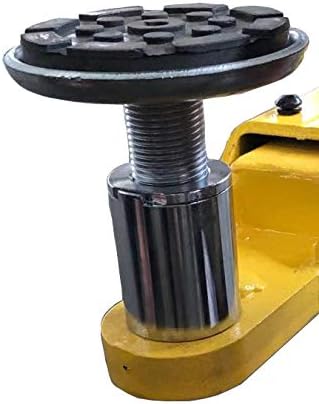

Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
One Set of 4″ Tall Truck Adapters Included; 6’9″ Lift Height Maximum with Truck Adapters
-
All Robot Welded Structure with Durable Powder Coated Finish
-
-

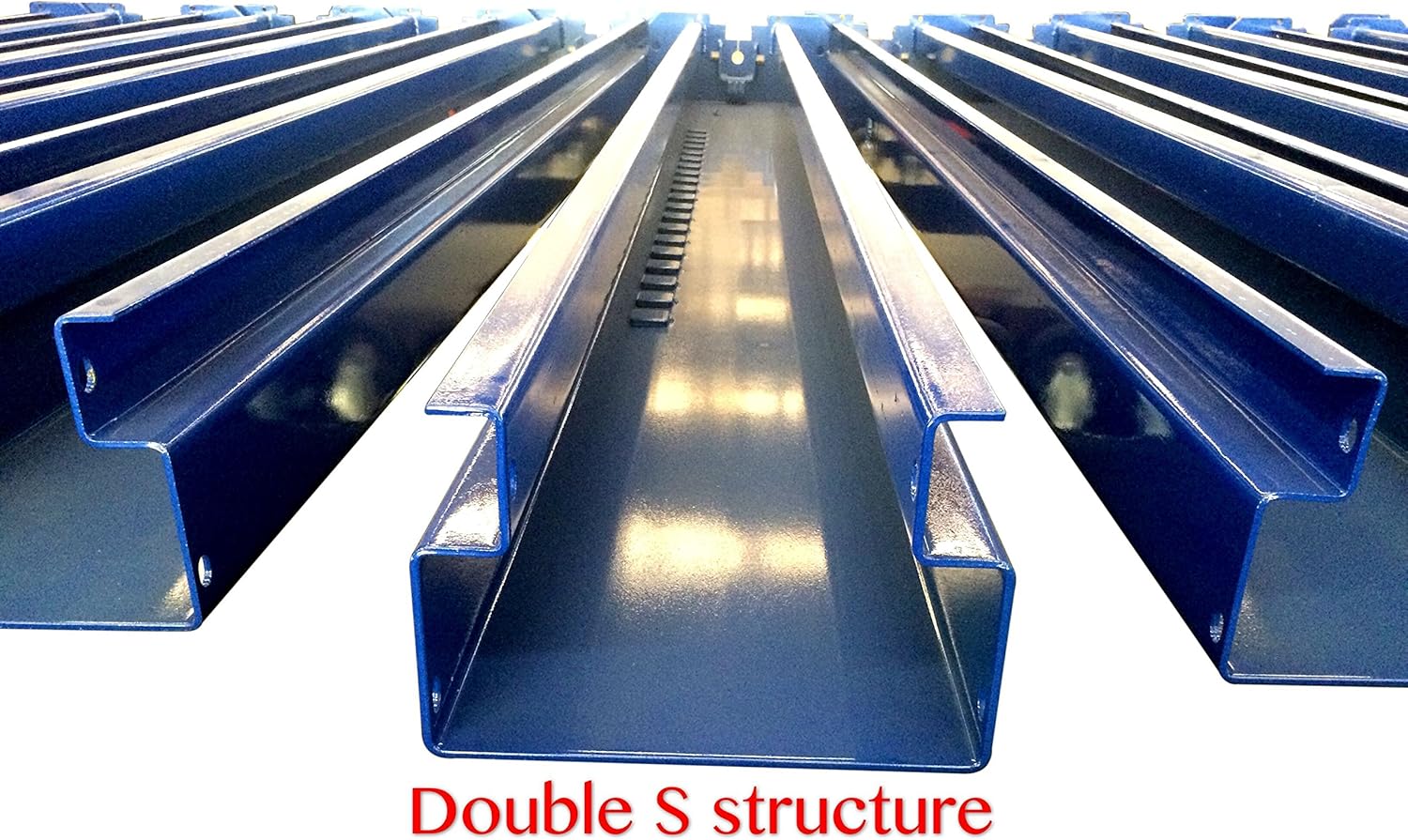

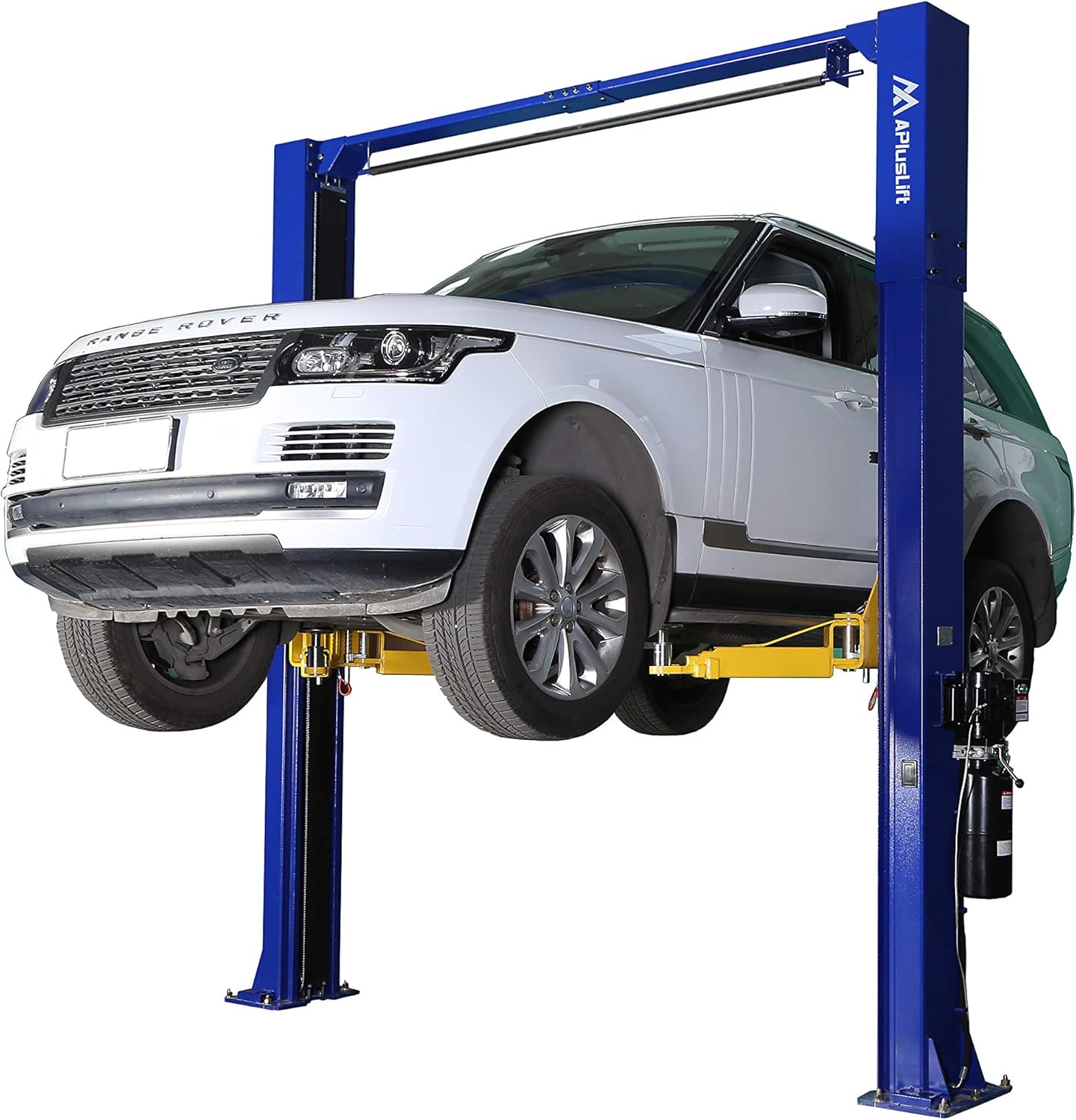

APlusLift HW-10KOH-A car lift (auto hoist) is one of the most affordable overhead car lifts built with quality materials and good workmanship. The lift has a strong double “S” column design to support 10,000 LB capacity. We also have an 10000LB overhead car lift with a single-point release.
We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have available for our lifts. We welcome suggestions to improve our products and service!
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require an on-site forklift We strongly recommend against renting a forklift; expenses are not reimbursed. See the shipping policy below for limited access/remote/high-cost areas.
Specifications |
|||
| Model | HW-10KOH-A (This Model) |
AP-10SR (for Comparison) |
|
| Manual | HW-10 KOH- A manual | AP-10SR Manual | |
| Style | Overhead | Overhead | |
| Lock Release | Double Point Release | Single Point Release | |
| Warranty | 3 Years (36 months) | 3 Years (36 months) | |
| Lifting Capacity | 10,000 LB | 10,000 LB | |
| Overall Height | 143 3/16″ | 143 3/16″ | |
| Overall Width | 134 5/16″ | 134 5/16″ | |
| Maximum Lift height with Truck Adapters | 81″ | 81″ | |
| Maximum Lift height without Truck Adapters | 75″ | 75″ | |
| Maximum lift height from bottom of the arm to the ground | 71″ | 71″ | |
| Minimum Height of Adjustable Pads from Ground | 4″ | 4″ | |
| Drive Through Width (Carriage to Carriage) | 100″ | 100″ | |
| Column to Column Width | 109″ | 109″ | |
| Column Cross Section | 11″L x 7″W | 11″L x 7″W | |
| Driving Mode | Dual hydraulic cylinders, chain drive | Dual hydraulic cylinders, chain drive | |
| Motor | 220V Single Phase 3HP 10A (recommend a 30A breaker) | 220V Single Phase 3HP 10A (recommend a 30A breaker) | |
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | 3-5 gallons AW32/AW46 (not included) | |
| Time to full rise | 50 seconds | 50 seconds | |
| Shipping Weight | 1470 LB | 1400 LB and 120 LB | |

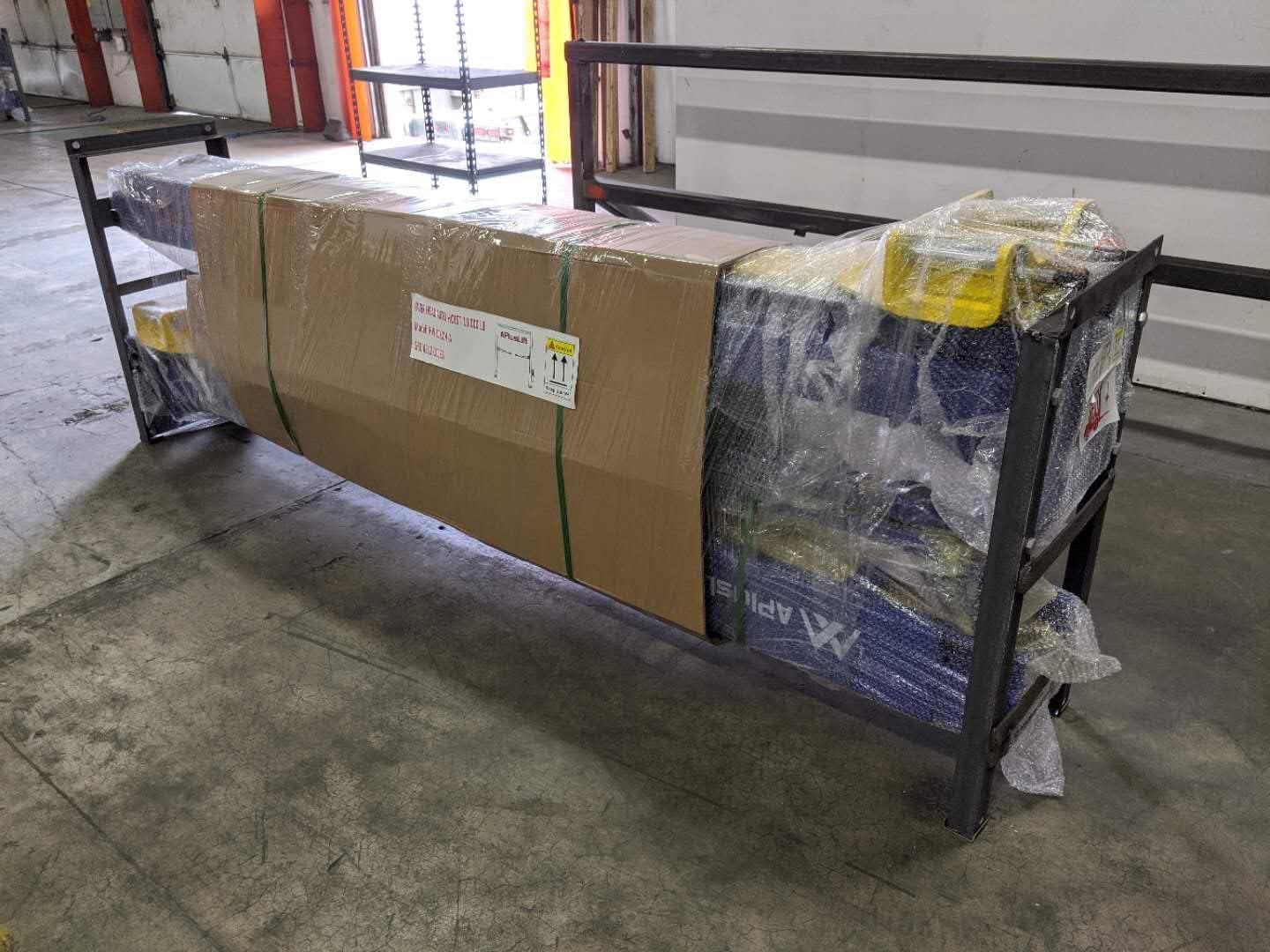

| Shipping package size | 113″L x 22″W x 40″ H |
|
|
| Concrete Requirement |
6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) |
||
| Parts Included |
|
||
| Arm Assembly |

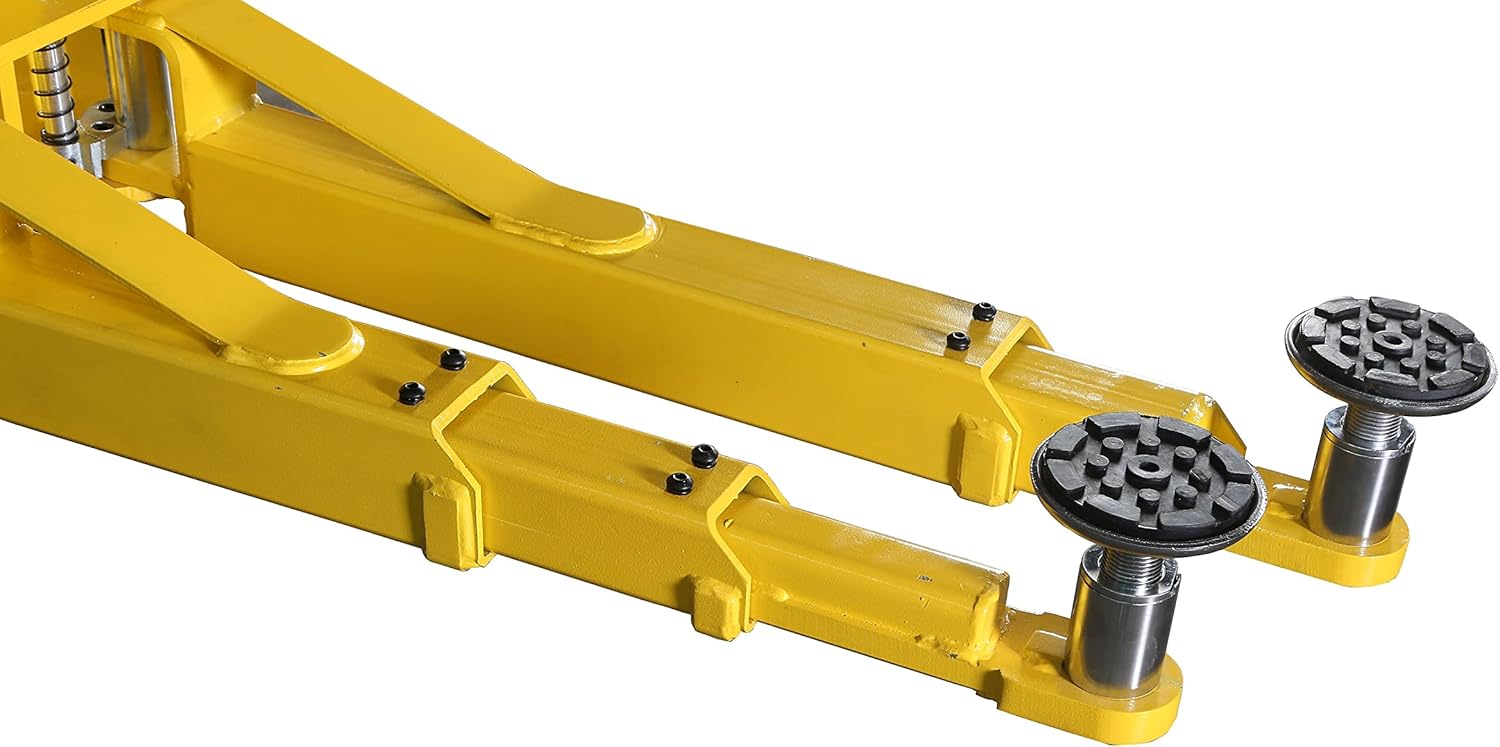

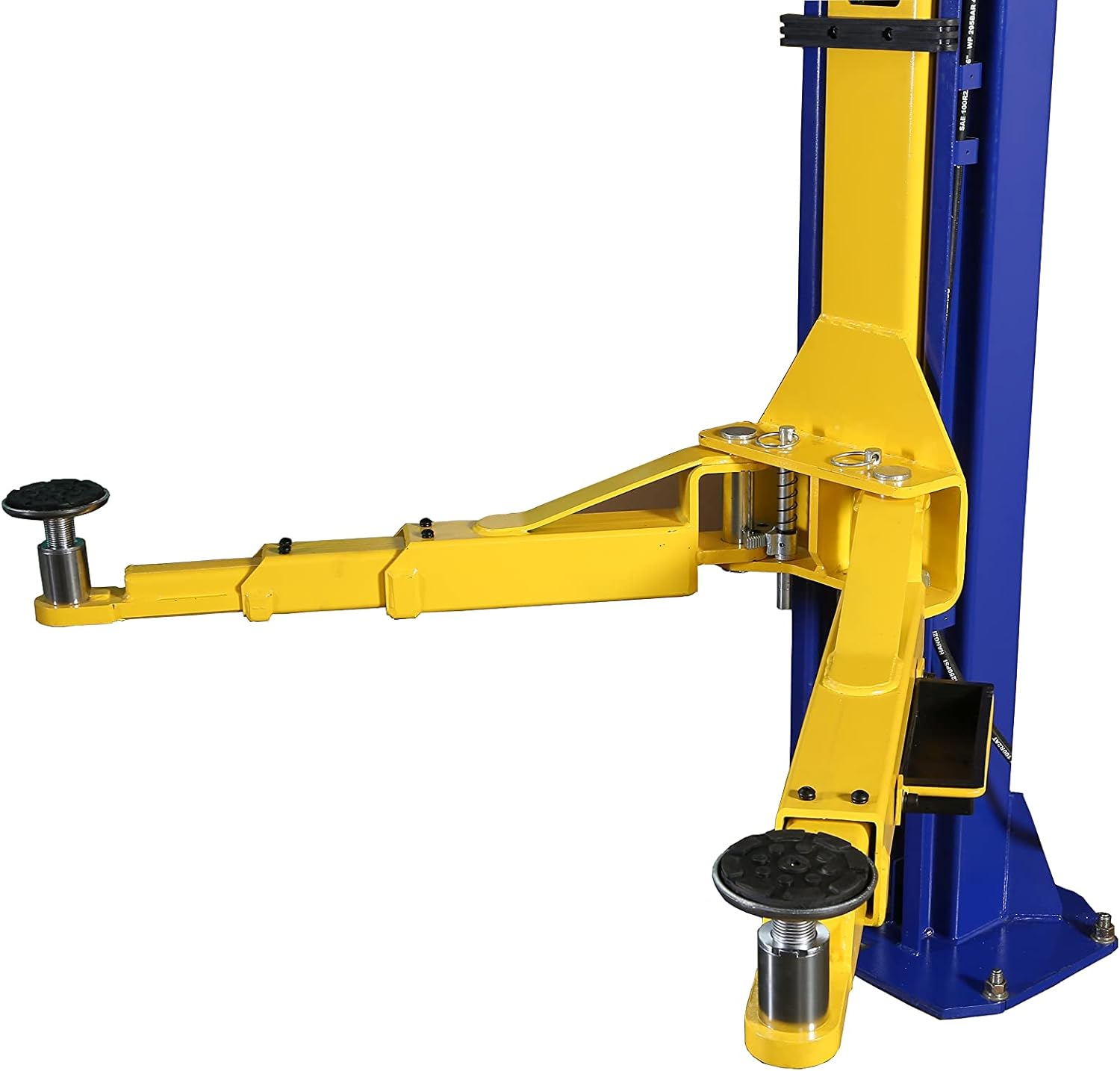

Combo (symmetrical and asymmetrical) Arm Assembly |
||
| Front Arms |
Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″ |
||
| Back Arms |
Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ |
||
| Column Steel Thickness |
13/64″ |
||
| Carriage Steel Thickness |
15/64″ |
||
| Carriage Yoke Thickness |
9/16″ |
||
| Arm Steel Thickness |
15/64″ |
||
| Base Plate Steel Thickness |
5/8″ |
||
| Model | HW-10KOH-A (This Model) |
||
Features
- CE Certified Lift Structure and Hydraulic System
- Third-party tested with a dynamic load capacity of 115%
- Third-party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Double-point safety lock release
- Double seal rings protecting PU material
- Carriage material Q355 (ASTM A572), stronger than normal Q235 steel
- Lifting operation by pressing the “UP” button on the motor
- Manual lowering operation by pressing the lever

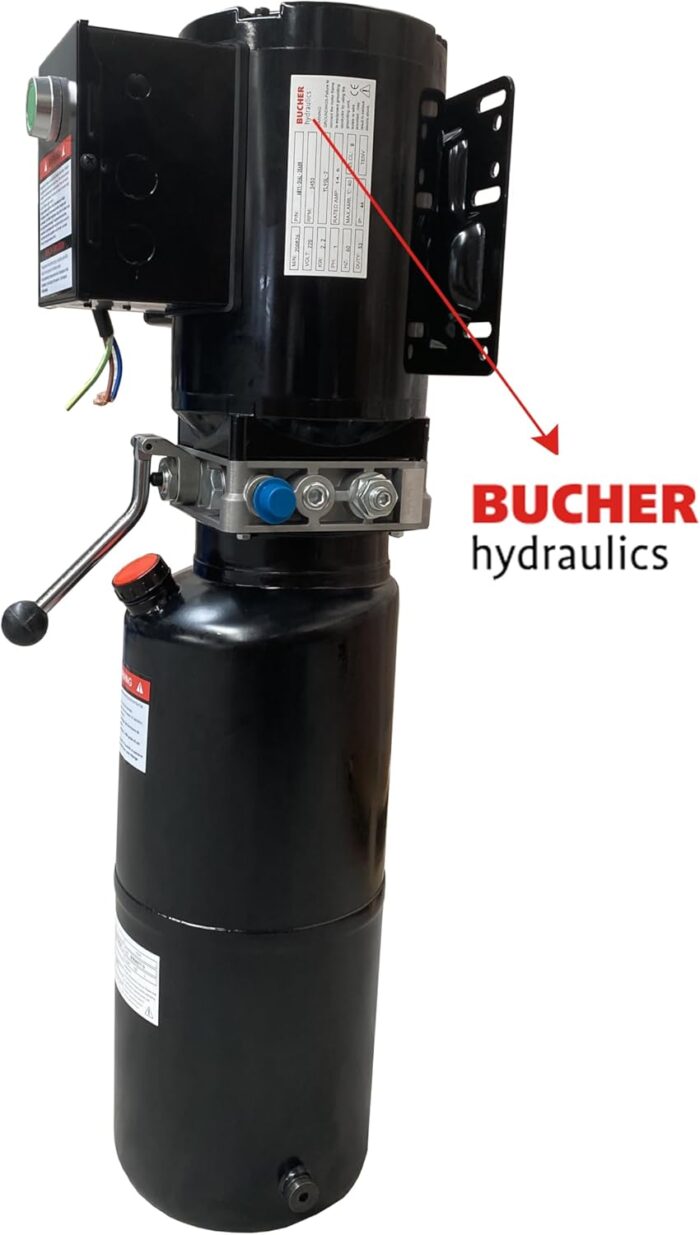

- Relief valve built-in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built-in power pump to prevent overloading
- Door guard protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
